Armored Personnel Carrier (APC)

The 5153 Armored Personnel Carrier is a high-mobility 4×4 bulletproof transport vehicle engineered for secure personnel movement and tactical operations in high-risk environments. Combining a reinforced armored structure with a heavy-duty off-road chassis, the platform delivers dependable protection, excellent terrain adaptability, and stable long-range operational performance.



Designed for security escort, border patrol, infrastructure protection, emergency response, and special operations support, the vehicle can transport up to 10 personnel while maintaining enhanced ballistic and blast resistance. Its V-shaped blast-protected body structure, run-flat tire system, and high-torque diesel powertrain ensure reliable mobility across challenging terrain and demanding operational conditions.



Built for both urban security missions and off-road deployment, the 5153 provides an ideal balance of protection, mobility, payload capacity, and operational versatility for government agencies, security organizations, and critical infrastructure operators.

Key Advantages

B7-Level-Ballistic-Protection

B7-Level Ballistic Protection

Armored body and bulletproof glass provide high-level ballistic protection for personnel safety

Pure-Electric-Drive

Heavy-Duty 4×4 Mobility

Excellent off-road performance across desert, mountain, and rough terrain environments

Safety

Blast-Resistant Structure

V-shaped underbody design enhances protection in hazardous operating conditions

High-Personnel-Capacity

High Personnel Capacity

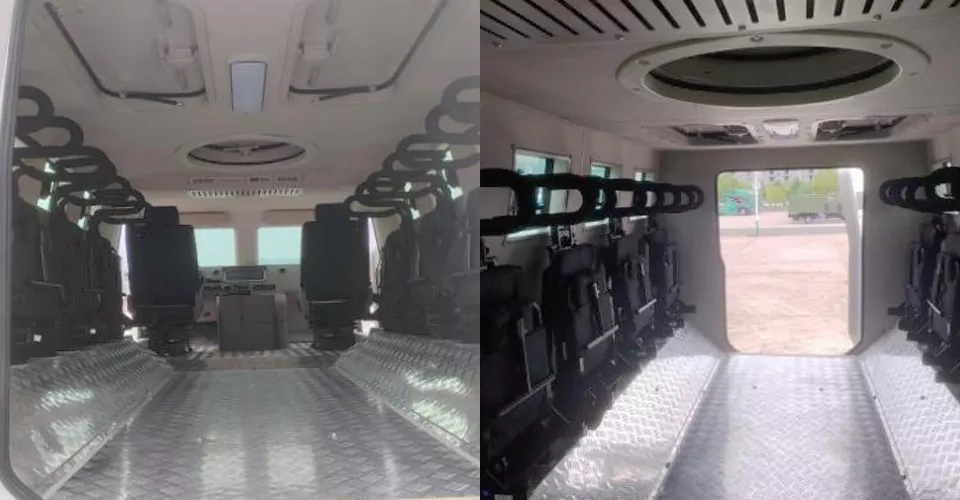

Configured for 2 crew members and 8 passengers with anti-blast seating system

Multi-scenario-adaptability

Long-Range Operational Capability

Large-capacity fuel tank supports extended driving range up to 800 km

Modular-Platform

Mission-Ready Configurations

Supports optional night vision, 360° cameras, CTIS, communication systems, and warning lights

Applications

  • Security Escort Operations

  • Border Patrol & Surveillance

  • Critical Infrastructure Protection

  • Emergency Response Missions

  • High-Risk Personnel Transport

  • Government & Security Operations

Specifications

Category

Item

Specification

GeneralModel5153

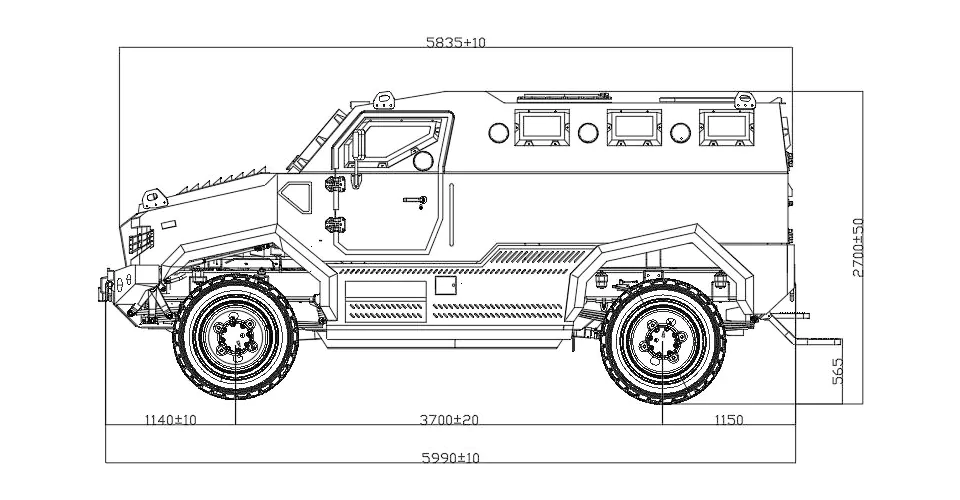

Dimensions (L×W×H)≤5990 × ≤2450 × ≤2750 mm
Wheelbase3700 mm
Drive System4×4
Turning Radius≤9 m
Ground Clearance360 mm
Fording Depth1200 mm
Weight & CapacityCurb Weight≤13,500 kg
Gross Vehicle Weight15,500 kg
Payload Capacity≥2,000 kg
PowertrainEngineISDe 375 Diesel Engine
Maximum Power275 kW
Maximum Torque1450 Nm
TransmissionAutomatic 6AT
Transfer CaseHigh / Low Range
Fuel Capacity330 L
Maximum Range800 km

Category

Item

Specification

ProtectionBallistic ProtectionEN1522 B7
Bulletproof GlassB7 Certified
Blast ProtectionV-shaped Blast-Resistant Floor
Tire SystemRun-flat Tires
Additional ProtectionArmored Fuel Tank & Battery

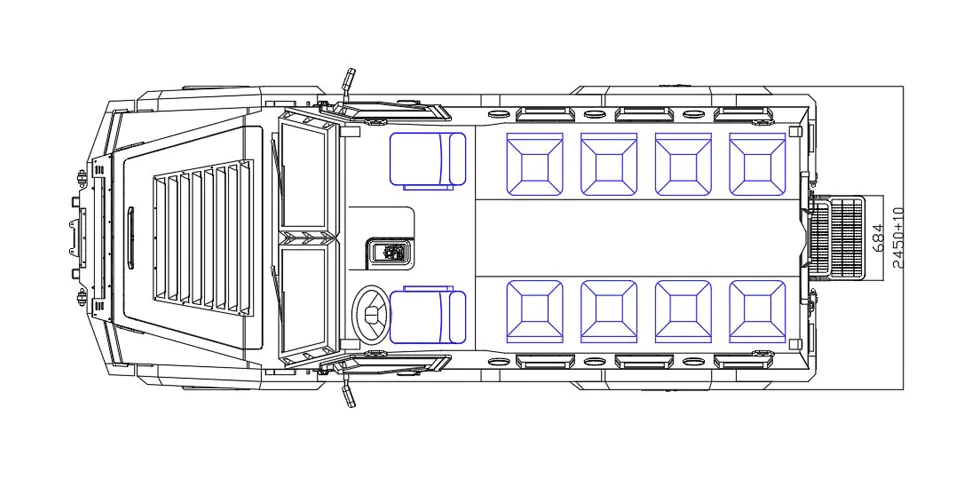

Personnel CapacityCrew2
Passengers8
Optional EquipmentSystemsCTIS / Night Vision / 360° Camera / Winch / Communication System / Warning Lights
