Bomb Disposal Robot

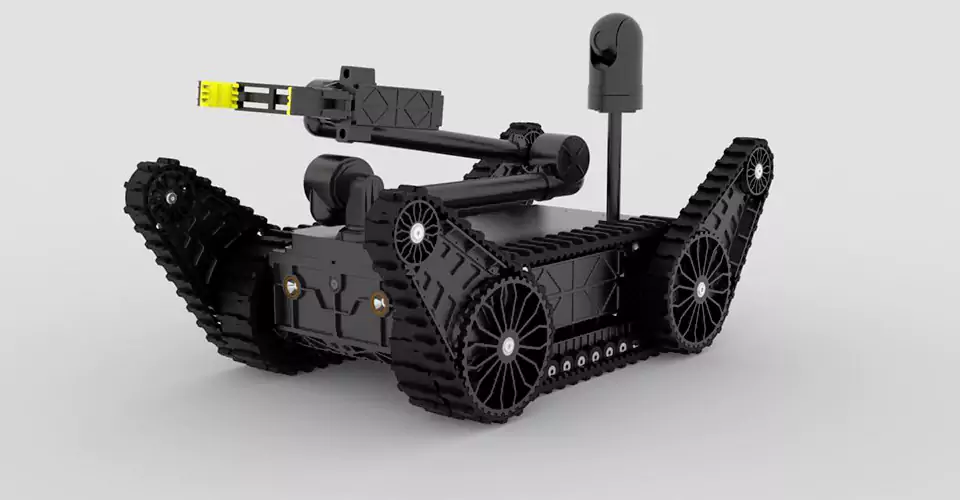

The JJPB Swing Arm Tracked Robot is a professional bomb disposal robot designed for hazardous operations, explosive ordnance disposal (EOD), emergency response, and complex terrain environments. Equipped with a high-mobility tracked chassis, 5-DOF robotic arm, and HD visual system, the robot enables remote inspection, suspicious object handling, hazardous material manipulation, and mission execution in areas unsafe for human personnel.
Built for demanding operational environments, the platform combines excellent obstacle-crossing capability, stable remote control performance, and precise robotic manipulation. Its swing-arm tracked structure and compact body design allow reliable operation in confined spaces, uneven terrain, disaster zones, and hazardous industrial environments.
Key Advantages
High-Mobility Tracked Chassis
Swing-arm tracked structure provides strong obstacle-crossing capability and stable movement across uneven terrain
5-DOF Robotic Arm
Integrated multi-joint robotic arm supports gripping, lifting, moving, and remote manipulation tasks
HD Remote Visual System
Equipped with four 1080P HD cameras including front, rear, PTZ, and robotic claw cameras for precise remote operation
Long-Range Wireless Control
Wireless remote-control system supports up to 300 m visible-distance operation for enhanced operator safety
Zero-Radius Turning
Supports rotation in place for confined spaces and complex operational environments
Industrial-Grade Protection
IP65 protection level suitable for harsh outdoor and industrial applications
Applications

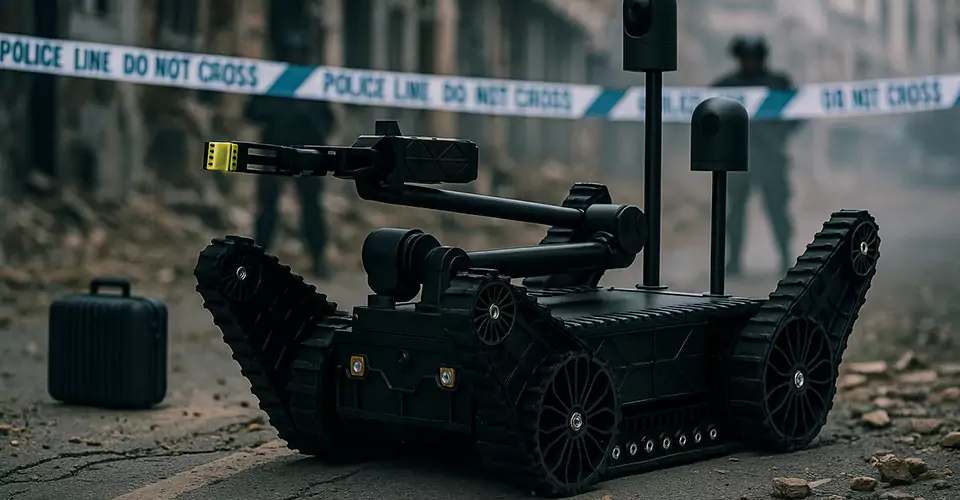

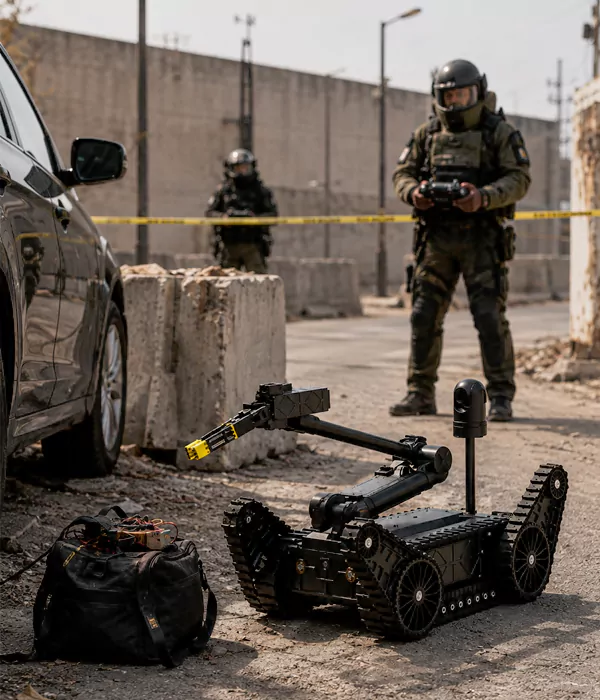

Bomb Disposal & EOD Operations
Hazardous Area Response

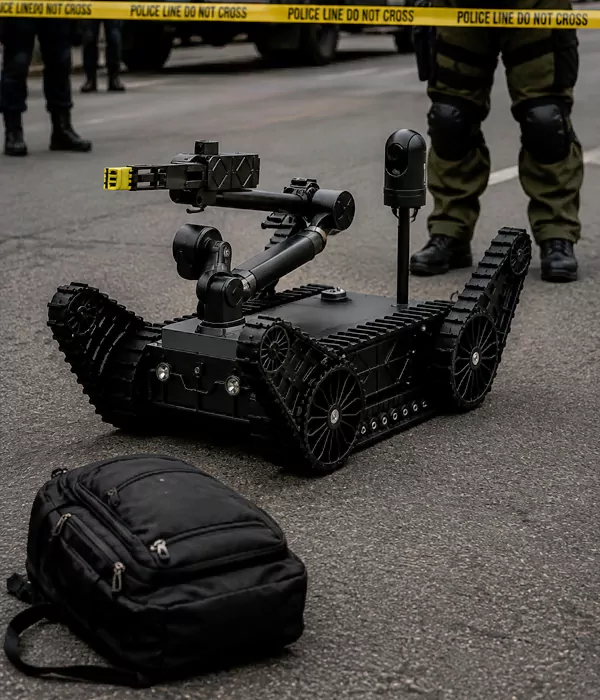

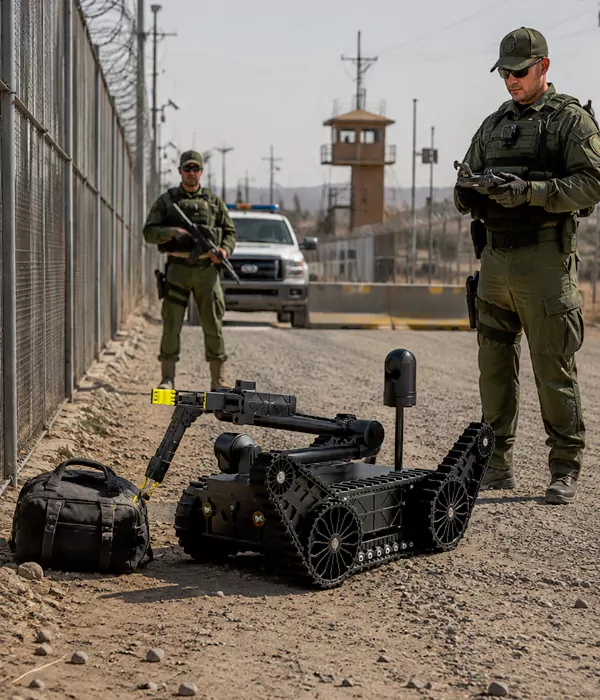

Public Safety & Security Operations
Airport & Port Security
Major Event Protection

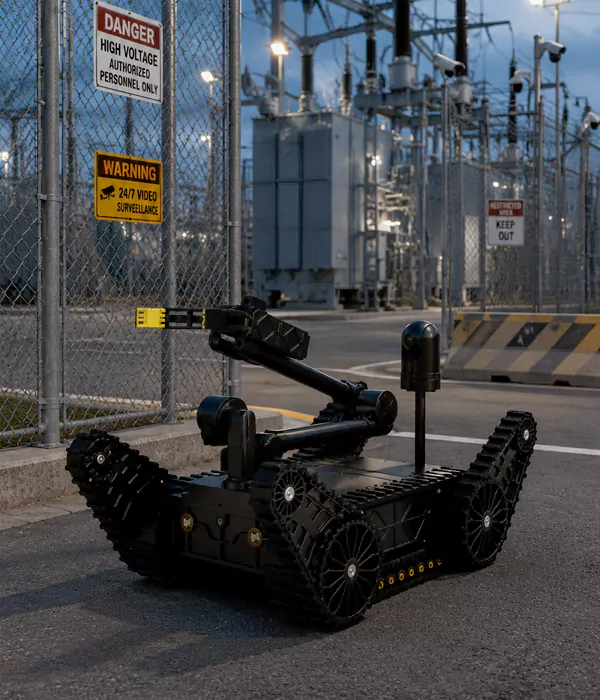

Industrial High-Risk Operations
Professional Emergency Response Missions
Specifications
Category | Item | JJPB-04 | JJPB-05 |
| Main Dimensions | Robot Dimensions (Retracted) | 680 × 520 × 550 mm | 800 × 600 × 550 mm |
| Robot Dimensions (Extended) | 1000 × 520 × 550 mm | 1300 × 600 × 550 mm | |
| Robotic Arm Length | 1300 mm | 1400 mm | |
| Robot Weight | ≤60 kg | ≤80 kg | |
| Tracked Chassis | Walking Speed | ≥1 m/s | ≥1 m/s |
| Vertical Obstacle Crossing | 200 mm | 240 mm | |
| Ditch Crossing Width | 300 mm | 400 mm | |
| Climbing Ability | ≥30° | ≥30° | |
| Turning Radius | Rotation in Place | Rotation in Place | |
| Load Capacity | ≥20 kg | ≥50 kg | |
| Protection Level | IP65 | IP65 |
Category | Item | JJPB-04 | JJPB-05 |
| Battery System | Battery Type | 24V Lithium Battery | 24V Lithium Battery |
| Battery Capacity | 20 Ah | 22 Ah | |
| Working Duration | Approx. 2 h | Approx. 2 h | |
| Charging Duration | Approx. 4 h | Approx. 6 h | |
| Robotic Arm | Number of DOF | 5 | 5 |
| Claw Opening Range | 0–120 mm | 0–120 mm | |
| Lifting Force | 5 kg (Optional 10 kg) | 10 kg (Optional 20 kg) | |
| Monitoring System | Camera System | 4 × 1080P HD Cameras | 4 × 1080P HD Cameras |
| PTZ Rotation | Pitch ±90° / Horizontal ±120° | Pitch ±90° / Horizontal ±120° | |
| Remote Control | Monitor | 15.6″ 1080P IPS Display | 15.6″ 1080P IPS Display |
| Control Distance | Wireless, 300 m Visible Distance | Wireless, 300 m Visible Distance |
