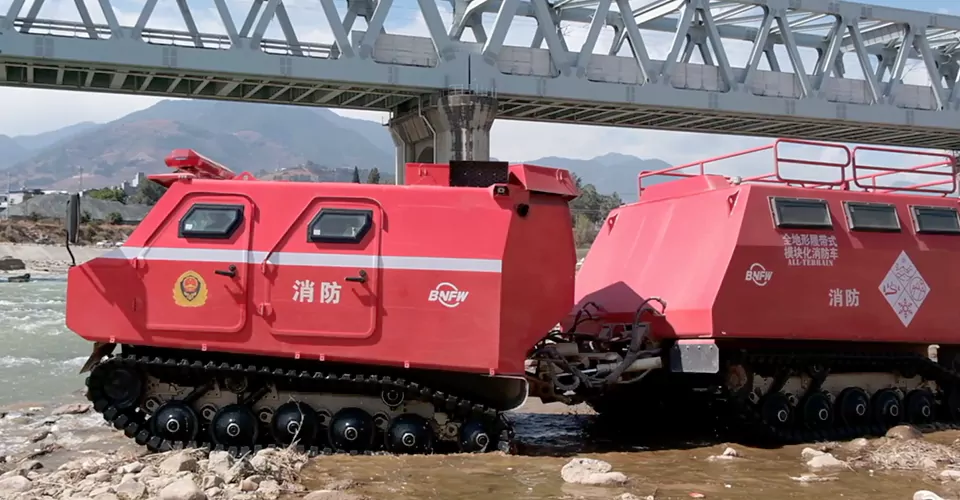

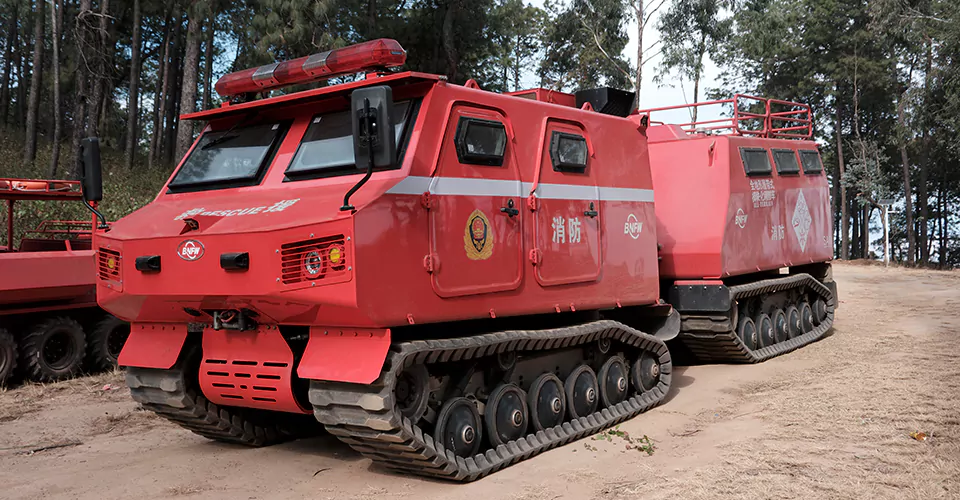

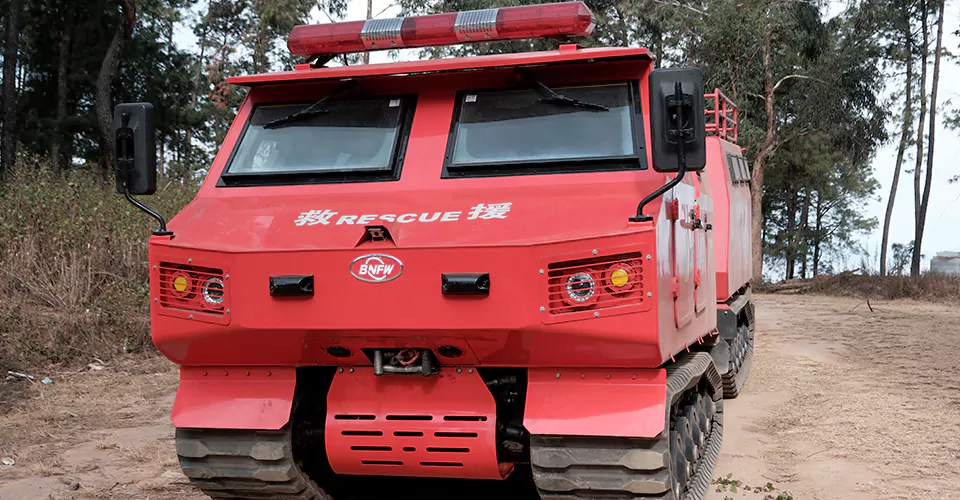

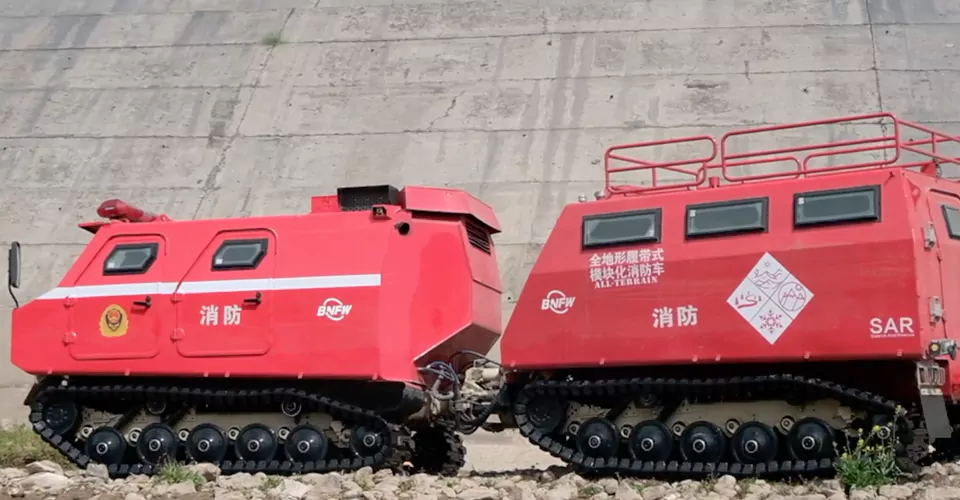

Tracked Utility Vehicle
Designed for the toughest environments, this high-performance Tracked Utility Vehicle delivers unmatched mobility, modular flexibility, and mission-ready capability. Built on the proven BN117 all-terrain platform, it operates reliably across snow, mud, swamps, deserts, and mountainous terrain—where wheeled vehicles simply cannot go.
Key Advantages
All-Terrain Tracked Mobility
Advanced tracked system ensures superior traction, stability, and low ground pressure across soft and uneven terrain.

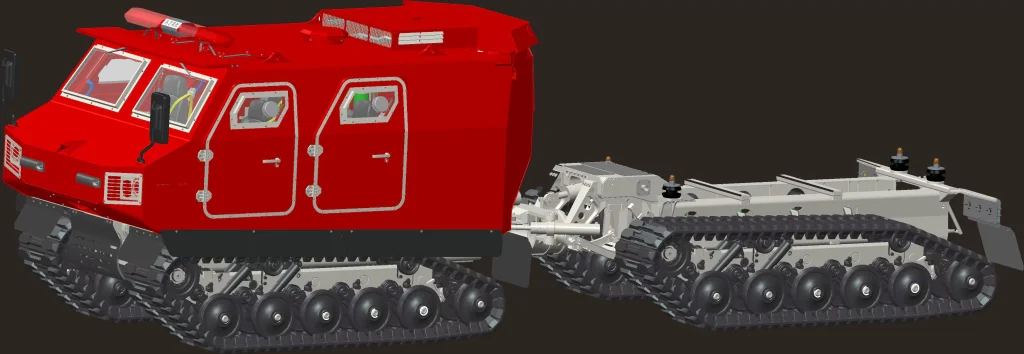

Modular Platform Design
“Platform + functional module” architecture allows quick configuration for firefighting, rescue, transport, and specialized operations.
Extreme Environment Capability
Engineered to perform in harsh conditions including forests, wetlands, deserts, snowfields, and inland waters.
Heavy-Duty Transport Performance
Reliable for carrying personnel, equipment, and mission payloads across remote and inaccessible areas.
Multi-Mission Ready
Supports transportation, emergency rescue, firefighting, and communication operations with a single platform.
All-terrain water cannon vehicle
All-terrain material transport vehicle
All-terrain unmanned platform vehicle
All-terrain firefighting tool vehicle
All-terrain multifunctional firefighting vehicle
All-terrain personnel & water transport vehicle

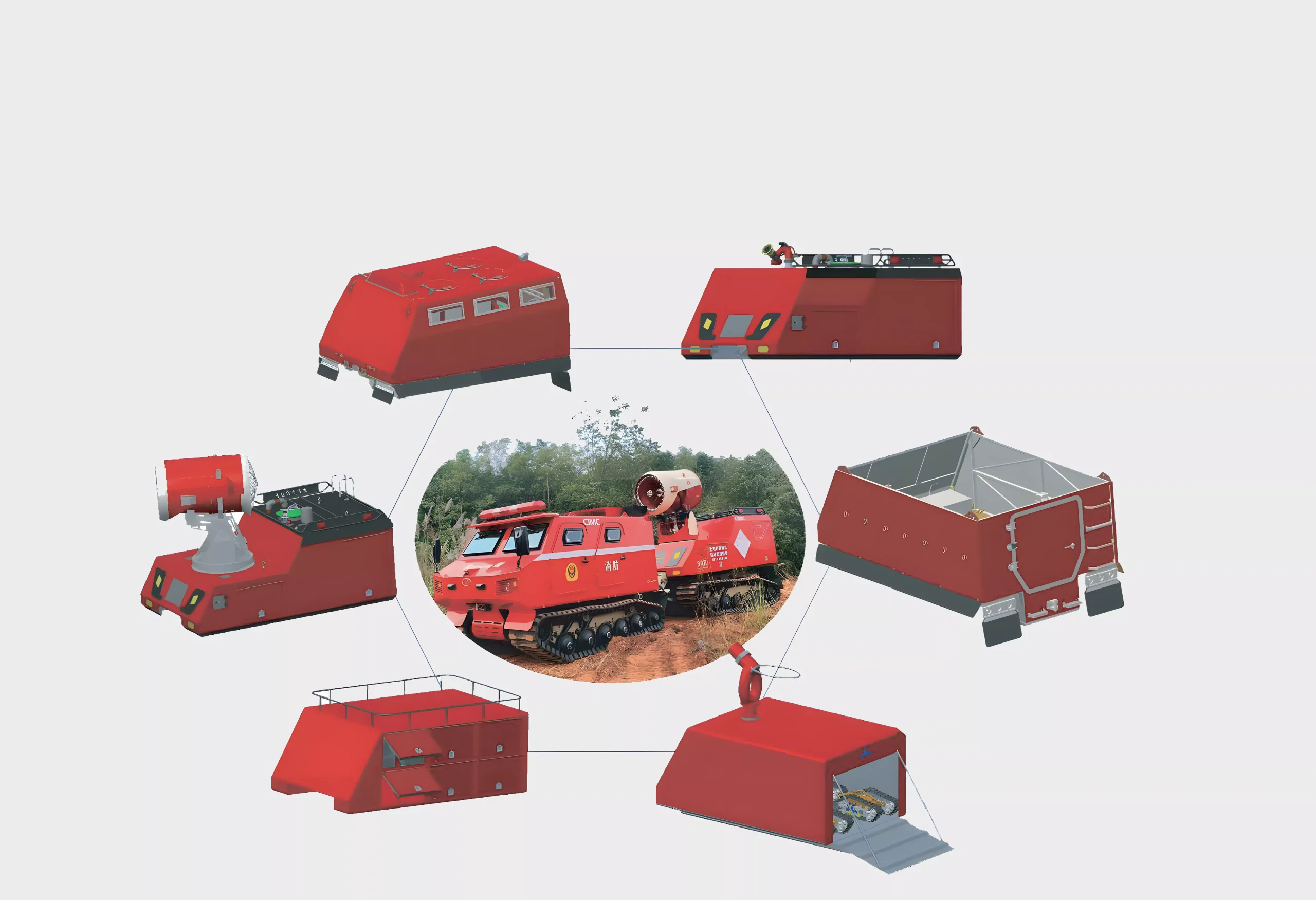

Modular Configurations
The rear platform can be equipped with various mission modules to meet diverse operational needs:
Modular Configurations
The rear platform can be equipped with various mission modules to meet diverse operational needs:
Applications
This Tracked Utility Vehicle is designed for a wide range of demanding industries and mission scenarios:
Emergency Rescue & Firefighting
Rapid deployment in forests, mountains, and disaster zones.
Disaster Relief Operations
Reliable transport in flood, snowstorm, and earthquake-affected areas.
Oil, Gas & Energy Projects
Access remote sites with heavy equipment across rough terrain.
Forestry & Environmental Operations
Ideal for forest patrol, wildfire response, and ecological missions.
Infrastructure & Remote Construction
Transport materials and personnel where roads are unavailable.
Special Operations Support
Versatile platform for logistics, transport, and mission-specific customization.
Specifications
BN117-X1
Category | Item | Specification |
General | Dimensions (L × W × H) | 9.1 × 2.45 × 3.6 m |
Weight | 17,000 kg | |
Number of Crew | 4 (front) | |
Performance | Maximum Road Speed | 65 km/h |
Minimum Turning Radius | 7.8 m | |
Maximum Gradeability | 35° | |
Maximum Side Slope Angle | 25° | |
Maximum Obstacle Crossing Height | 1 m | |
Trench Crossing Width | 1.6 m | |
Power & Equipment | Rated Power | 242 kW |
Winch Pull | 8000 kg | |
Pump Flow Rate | 1500 L/min | |
Turbofan Water Cannon Flow Rate | 500 L/min | |
Turbofan Water Cannon Range | 45 m | |
Fan Airflow | 40,000 m³/h | |
Capacity & Environment | Liquid Tank Capacity | 2500 L |
Operating Temperature Range | -43 ~ 50°C |
BN117-X2
Category | Item | Specification |
General | Dimensions (L × W × H) | 9.1 × 2.45 × 2.6 m |
Weight | 17,000 kg | |
Number of Passengers | 4 + 10 (or 4 front + modular equipment) | |
Performance | Maximum Road Speed | 65 km/h |
Floating Speed (Water) | 5 km/h | |
Minimum Turning Radius | 7.8 m | |
Maximum Gradeability | 35° | |
Maximum Side Slope Angle | 25° | |
Maximum Obstacle Crossing Height | 1 m | |
Trench Crossing Width | 1.6 m | |
Power & Equipment | Winch Pull | 8000 kg |
Maximum Flow Rate | 6 L/s (upgradeable with larger pump) | |
Turbofan Water Cannon Range | 280 m (upgradeable with larger pump) | |
Fan Airflow | 37 m (upgradeable with larger pump) | |
Capacity & Environment | Liquid Tank Capacity | 2000 L |
Operating Temperature Range | -43 ~ 50°C |
