Tracked Carrier | Electric Remote Control Transport Vehicle
The WR51 tracked carrier is a compact and powerful electric transport vehicle designed for heavy-duty material handling in challenging environments. Built with a durable crawler chassis and advanced suspension system, it delivers excellent stability and traction across rough terrain.
Equipped with dual high-torque brushless motors, this electric tracked vehicle ensures smooth operation, high efficiency, and reliable performance. With remote control capability and strong load capacity, it is ideal for construction sites, industrial transport, and off-road logistics applications.
Key Advantages
Heavy-Duty Tracked Carrier
Designed for transporting heavy loads across mud, slopes, and complex terrain
High Load Capacity (400 kg)
Robust cargo structure supports demanding transport tasks
Electric Powered Efficiency
Brushless motor ensures high torque, low noise, and energy efficiency
Stable & Reliable Operation
Low center of gravity improves balance and safety under load
Practical Field Configurations
Integrated lighting, monitoring system, and 12V/24V power interfaces
Applications
Construction Material Transport
Tracked Dumper Alternative for Job Sites
Industrial Cargo Handling
Agriculture & Forestry Transport
Remote Area Logistics
Disaster Relief Material Delivery
Specifications
Category | Item | Specification |
General | Model | WR51 |

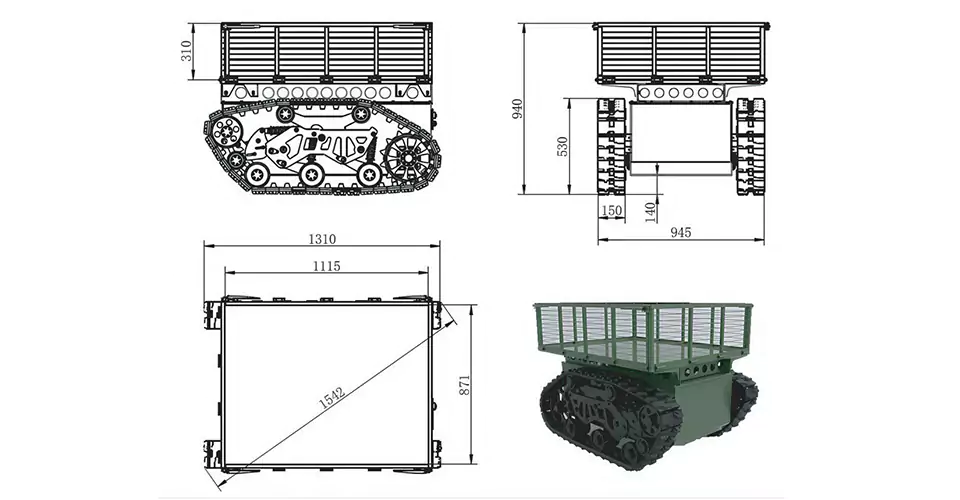

Overall Dimensions | 1310 × 945 × 940 mm | |
Chassis Weight | 390 kg | |
Ground Clearance | 140 mm | |
Track Width | 150 mm | |
Cargo & Capacity | Cargo Compartment | 1115 × 871 × 310 mm |
Max Load | 260 kg | |
Mobility & Performance | Running Speed | 0–5.4 km/h |
Max Slope Climbing | 30° | |
Max Obstacle Height | 200 mm | |
Vertical Overcome Height | 150 mm | |
Drive Wheel Diameter | 310 mm |
Category | Item | Specification |
Electrical System | Power Supply | DC 48V |
Maximum Power | 3 kW × 2 | |
Motor Type | Brushless DC Motor | |
Protection Level | IP64 | |
Remote Control Distance | 200 m (External Antenna) | |
Total Vehicle Current | 60A | |
Standby Power Consumption | ≤50W | |
Battery | Battery Type | Ternary Lithium |
Nominal Voltage | 48V | |
Rated Capacity | 80Ah | |
Charging Cut-off Voltage | 54.6V ± 2V | |
Discharge Cut-off Voltage | 39V | |
Discharge Current | 200A | |
Operating Temperature | -10°C ~ +60°C | |
Charging Temperature | 0°C ~ +45°C | |
Storage Temperature | 0°C ~ +35°C |
